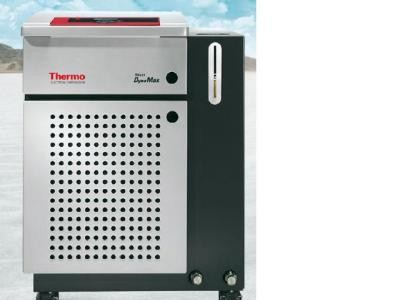

水浴循环器（Thermo Scientific HAAKE Bath）

仪器简介：

Typical applications:
• Jacketed reactor vessels
• Large rotary evaporators
• Reaction calorimetry
• Fermentation
• Analytical instrumentation cooling

技术参数：

Temperature Range： -40 to 150 °C
Cooling Capacity at 20 °C (50 Hz / 60 Hz)： 1.2 kW
Heating Capacity (230 V - 50 Hz / 208 V - 60 Hz)：2 kW / 1.6 kW
Temperature stability： +/- 0.01 K

Pump Performance (with silicon oil)：
Maximum Pump Pressure (bar)：1,2
Maximum Flow Rate：20 l/min

Pump Performance (with water)
Maximum Pump Pressure (bar)：1,5
Maximum Flow Rate：25 l/min

Electrical Performance
Power Requirements： 230 V / 50 Hz - 1 phase,
Maximum Current： 16 A
Communication：RS232, RS485
Display： 128 x 64 pixel

主要特点：

Extremely Fast Cooling and Heating with Precise Temperature

Easy to Operate
Programmable in
seven languages, the controller can store
10 ramping programs with 30 segments, saving you valuable programming time.

Adaptable to Meet Application NeedsDynaMax units cover a wide temperature range and thus are suitable for a variety of
applications. The systems feature a modular
design for even greater flexibility. You can configure the system for a specific application
and purchase only the options that you need.

水浴循环器（Thermo Scientific HAAKE Bath）由赛默飞中国实验室产品事业部 为您提供，如您想了解更多关于水浴循环器（Thermo Scientific HAAKE Bath）报价、参数等信息 ，欢迎来电或留言咨询。
